| Place of Origin: | China |
| Brand Name: | Infi |
| Model Number: | JSD23 |
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD20-300 |
| Packaging Details: | PVC bag in Carton box |
| Delivery Time: | 5-8 working day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PCS/Month |
| Material: | Synthetic Diamond | Color: | Yellow |
|---|---|---|---|
| Hardness: | Moh's 10 | Shape: | Rectange |
| Size: | 3-6mm | Usage: | Milling Tools , Diamond Seeds Or Substrate |
| Product Namee: | Yellow Hpht Diamond | Type: | Type Ib HPH |
| Highlight: | Yellow Lab Grown Diamonds HPHT,Single Crystal Lab Grown Diamonds HPHT,Diamond Single Crystal 3mm |
||

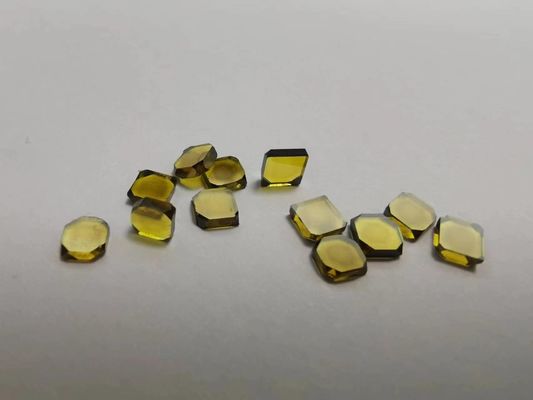

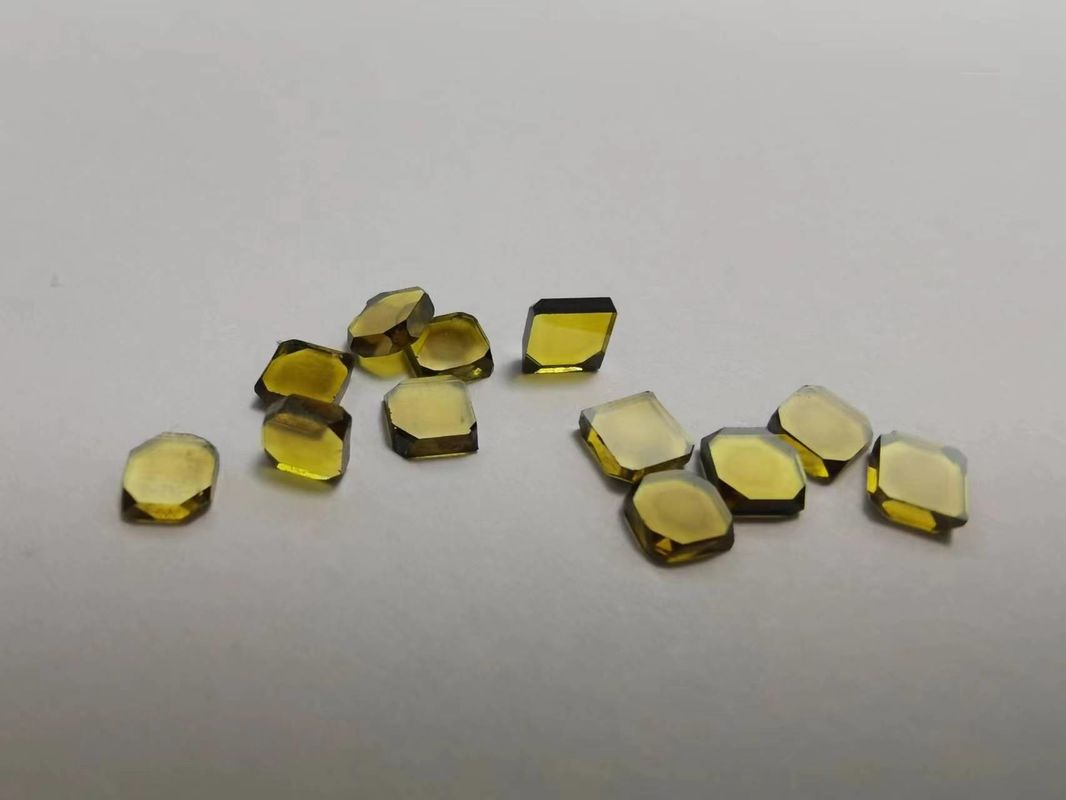

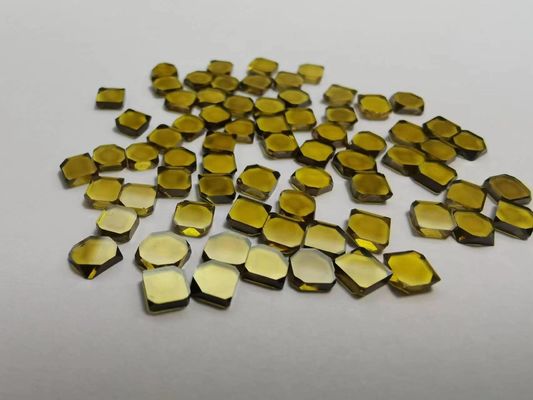

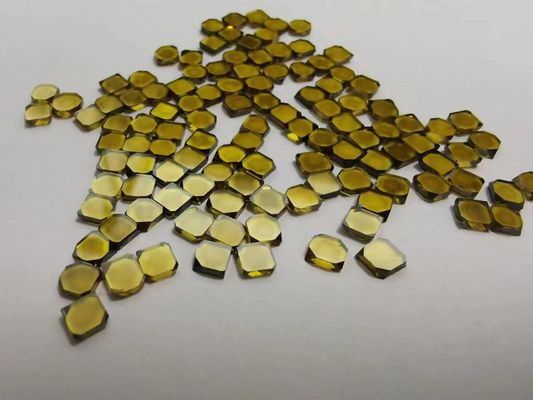

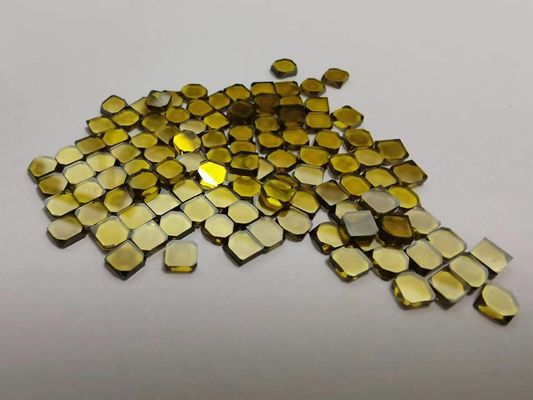

Yello Hpht lab grown single crystal diamond for milling tools
Developed using HPHT technology (high pressure, high temperature), synthetic hpht monocrystal diamond (MCD) is achieved by combining a mixture of carbon and transitional metals at very high pressures and temperatures
Advantage of MCD Diamond :
High hardness and wear resistance
High efficiency and low cost
High surface finish can be obtained on your workpiece
Application :
Super finishing and Miller finishing for Aluminum, Copper, Brass,
Gold, Nickel (Other Non Ferrous metals),Ultra Precision Cutting,
Clear Plastics
Specification
| Suggested application | MCD MILLING TOOLS |
| Model: | JSD23 |
| Crystal growth process: | Single crystal HPHT |
| Color: | Yellow and dark yellow |
| Key product features: |
1: Natural growth shape 2: Four small missing corners 3: 2 to 4 mm edge length and up to 1.7 mm thickness |
| Orientation: | 4pt/100 |
| Shape: | Near square |
| Size range: | 1.0mm -6.0 mm |
| Lateral Dimensions Measured | to smaller side |
| Edges | Natural growth |
| Edge Orientation | <100> edges |
| Corner Orientation | <111> |
| Face Orientation | {100} faces |
| Lateral Tolerance: | ‘+0.5/-0 mm |
| Surface Roughness, Ra | Polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
| Model number | Dimensions (LxWxT)(mm) |
| JSD23-202011 | 2.0x2.0x1.1 |
| JSD23-252511 | 2.5x2.5x1.1 |
| JSD23-303011 | 3.0x3.0x1.1 |
| JSD23-353511 | 3.5x3.5x1.1 |
| JSD23-404011 | 4.0x4.0x1.1 |
| JSD23-454511 | 4.5x4.5x1.1 |
| JSD23-505011 | 5.0x5.0x1.1 |
| JSD23-555511 | 5.5x5.5x1.1 |
| JSD23-606011 | 6.0x6.0x1.1 |
| JSD23-656511 | 6.5x6.5x1.1 |
