| Place of Origin: | Hunan, China |
| Brand Name: | Infi |
| Certification: | Non Certificate |
| Model Number: | CVD |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Size: | 2x2x1mm | Color: | Colorless |
|---|---|---|---|
| Grade: | Optic Grade | Warranty: | 1 Year |
| Highlight: | Colorless CVD Lab Grown Diamonds,Mono CVD Lab Grown Diamonds,Colorless Single Crystal CVD Diamond |
||
Diamond has an exceptionally high transmission over a very broad range of wavelengths and low scatter in IR applications. It is extremely hard and chemically inert, making CVD diamond the optimal choice in applications demanding higher power, larger area, and resistance to hazardous materials or greater strength. These abilities also enable smaller material geometries to be used, which opens up new lightweight applications.
Key product features:
1. Extremely broad transmission spectrum
2. The refractive index of diamond is ~2.4. achieve broad and high transmission in the mid-infrared at wavelengths from 1 micron to 30 microns.
3. The surface roughness＜ 10 nm, for good transmission from 1μm wavelength,
4. The error is not exceed 0.2mm

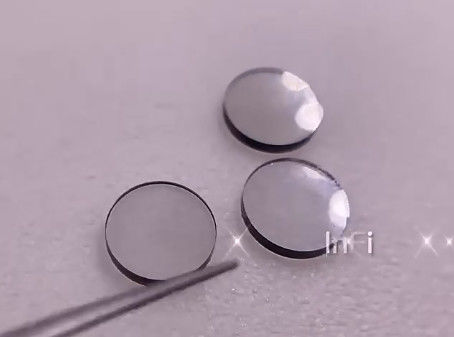

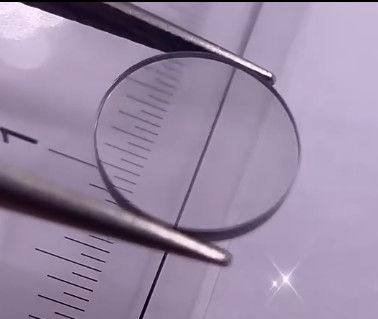

5. Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree , Cut in a variety of shapes and sizes, including lenses and prisms.
6. Diamond’s exceptional properties provide benefits in a variety
Product details:
| Model | optical cvd |
| Crystal growth process | single crystal CVD |
|
Suggested application |

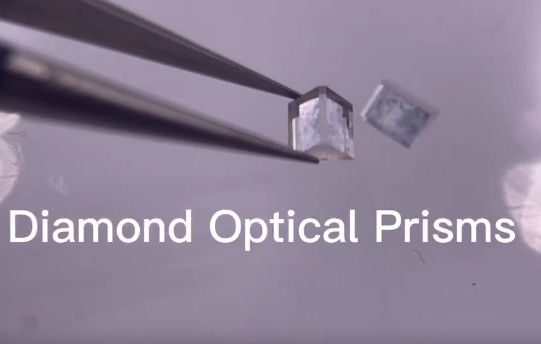

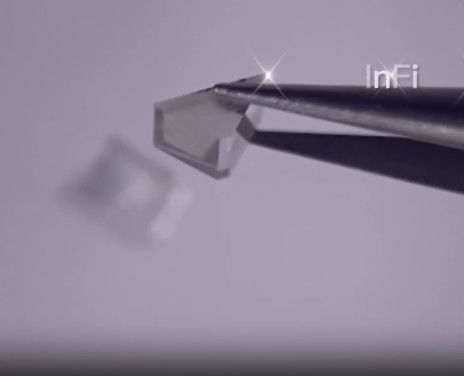

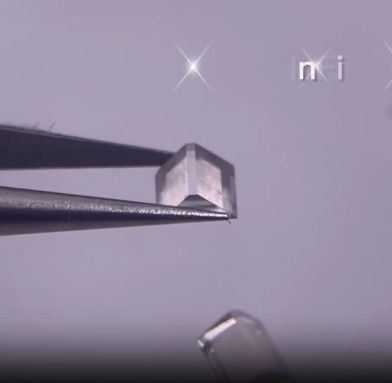

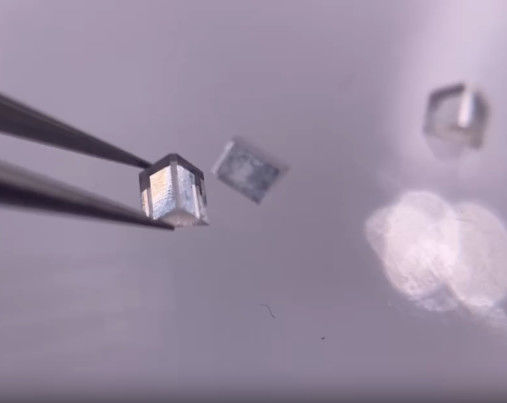

Applied to infrared radiation measuring device, the triangular diamond prism is good for mid-infrared transmission. |
| Color | colorless |
| Material | mono CVD diamond prism |
| Usage | optical area |
| Shape | customized (please provide drawings) |
| Grade | optic grade |
| Hardness | Moh's 10 |
| Surface treatment | 6 faces polished |
| Crystallography | Typically 100% single sector {100} |
| Edges | Laser Cut |
| Laser Kerf | 3-5° |
| Lateral Tolerance: | +0.05/-0.05mm |
| Nitrogen Concentration: | ＜ 10 ppm |
| Thermal Conductivity: | typically 1800+Wm-1K-1 |
| Transmission: | Transmittance :1064nm:＞65% 8μm～25μm:＞70% |
Packing and shipping:
| Selling Units: | Single item |
| Single package size: | 20X15X15cm |
| Port: | Changsha |
| Single gross weight: | 0.100 kg |
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
