| Place of Origin: | China |
| Brand Name: | Chenguang |
| Model Number: | SCD |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Crystal Growth Process: | Single Crystal CVD | Color: | Colorless |
|---|---|---|---|
| Orientation: | 4pt/100 | Available Shape: | Circle ,Square,triangle, Trapezoid |
| Edges: | Laser Cut | Edge Features: | < 0.1 Mm |
| Edge Orientation: | <100> Edges | Laser Kerf: | 3-5° |
| Highlight: | window Optical CVD diamond plate,Optical CVD diamond plate,0.1 mm Optical CVD diamond plate |
||

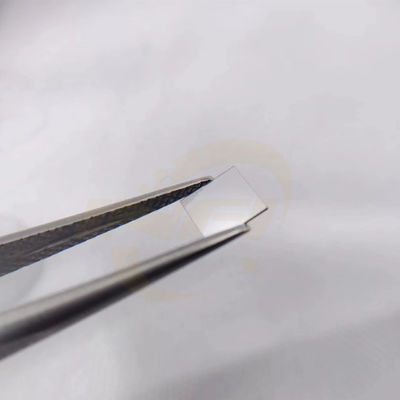

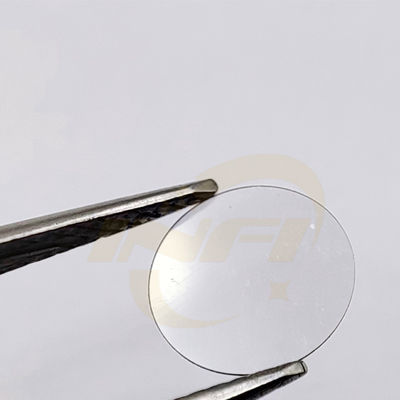

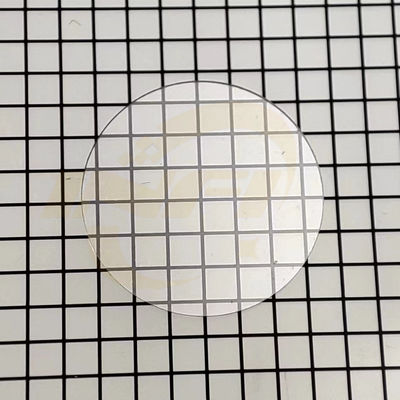

0.1 mm Optical CVD diamond plate opticl diamond window
Product Parameter:
Specialfications:
| Application | High power CO2 lasers |
| High power solid state lasers | |
| Spectroscopy (both laboratory and in-line) | |
| Semiconductor processing | |
| Terahertz and radar applications | |
| (Bio)Medical optics | |
| Defence and aerospace (highpower/multi-spectral imaging) | |
| Other cutting edge technical applications for optical CVD diamond include: beam splitters,YAG cooling, particle detection and quantum sensing.UV, IR, MW, X-ray windows. |
| Crystal growth process: | single crystal CVD |
| Color: | Colorless |
| Key product features: | • Extremely broad transmission spectrum 1064nm:＞65% ; 8μm～25μm:＞70% . • Highest thermal conductivity (>2000 W m-1 K-1) • Chemically inert and operates in corrosive environments • Biocompatiblity • Scratch resistant • Low birefringence • Highest Raman gain coefficient • Low absorption • Thicknesses available up to 3 mm • Wide range of sizes available • Single crystal path length >10 mm |
| Benefits: | • High quality surface finishes on abrasive • workpiece materials • Outperforms natural diamond due to its consistent and predictable material properties • Offers superior edge quality in ultra-precision machining operations |
| Orientation: | 4pt/100 |

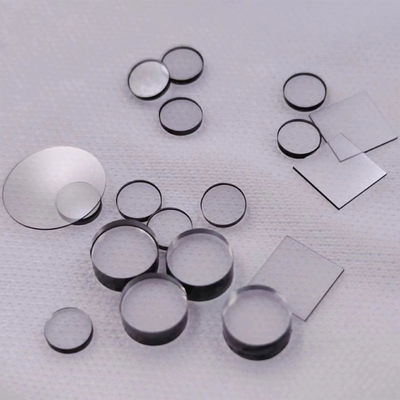

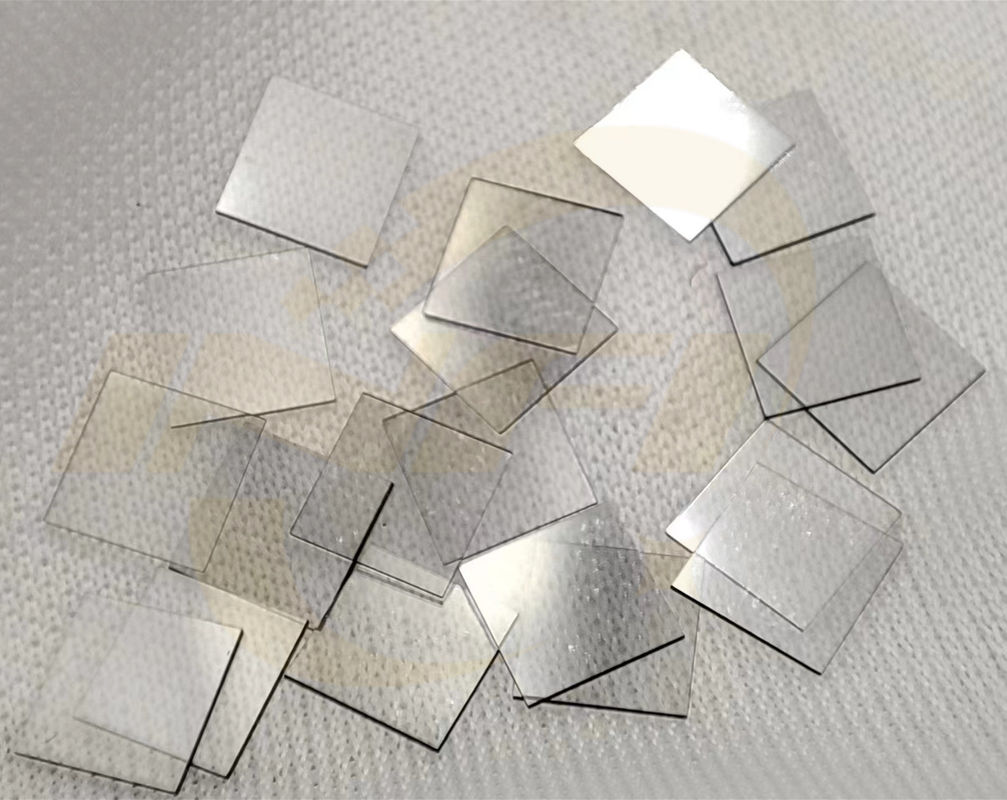

| Available Shape: | Circle ,Square,triangle, Trapezoid, |
| Size range: | 2-15 mm (single crystal CVD diamond), Thickness: 0.05-3mm, up to 10*10*2 and 15*15*0.5 |
| Edges | Laser Cut |
| Edge Features | < 0.2 mm |
| Edge Orientation | <100> edges |
| Face Orientation | {100} faces |
| Laser Kerf | 3-5° |
| Lateral Tolerance: | ‘+0.1/-0.1 mm |
| Flatness | Within 2µm |
| Parallelism : | 10-20um |
| Polished sides Roughness, Ra | polished, Ra < 10-30 nm |
| Thickness Tolerance | ‘+/- 0.05 mm |
| Boron Concentration [B]: | <0.05ppm |
| Nitrogen Concentration: | < 10 ppm |
| Refractive Index (10.6 µm) (1): | 1064nm:2.392 600nm:2.415 |
| Thermal Conductivity: | typically > 1900 Wm-1K-1 |
| Transmission: | Transmittance :1064nm:＞65% 8μm～25μm:＞70% |
