| Place of Origin: | Hunan, China |
| Brand Name: | Infi |
| Certification: | Non Certificate |
| Model Number: | Null |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Color: | White | Shape: | Square,rectangle |
|---|---|---|---|
| Size: | 3-15mm | Customized Support: | OEM, ODM |
| MOQ: | 5 Pcs | Material: | Synthetic CVD |
| Highlight: | Single Crystal Mechanical CVD Diamond,Optical Grade CVD Diamond Substrate,8x8 Optical Lab Diamond Seed |
||
| Product name | CVD diamond substrate diamond plate |
| Usage | Heat sink, diamond blade |
| Available Shape | Square,rectangle |
| Color | White |
| size | 3-15mm |
| Material | Synthetic CVD |
| thickness | 0.3-3mm |
| Thermal conductivity | 1500W/MK |
| Application | High power electronic components |
| Customized support | OEM, ODM |
| Diamond Type | Synthetic (lab created) |
| orientation | 110 100 |
| Diamond Enhancements | Seeds |
Application of optical grade CVD:
1, Laser Optical Components for lasers, including laser resonators, output windows,and mirrors.
2, Optical Windows and Lenses, including telescopes, cameras, and other sensors.
3nterferometer Elements including high-precision mirrors, beam splitters, andgratings
4, Optical Sensors,including spectrometers, optical scanners, and photodetectors.
5, Astronomical Observations
6, Fiber Optic Communication, optical couplers, modulators, and demodulators; among other components.7,High-Precision Optica Measurements such as interferometers and Raman:spectrometers.8,Medical imaging equipment, such as endoscopes, optical microscopes, and medical:laser devices9Laser etching equipment.

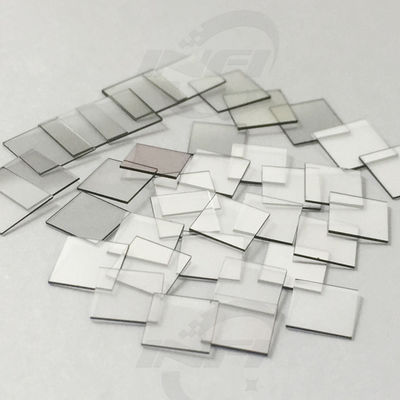

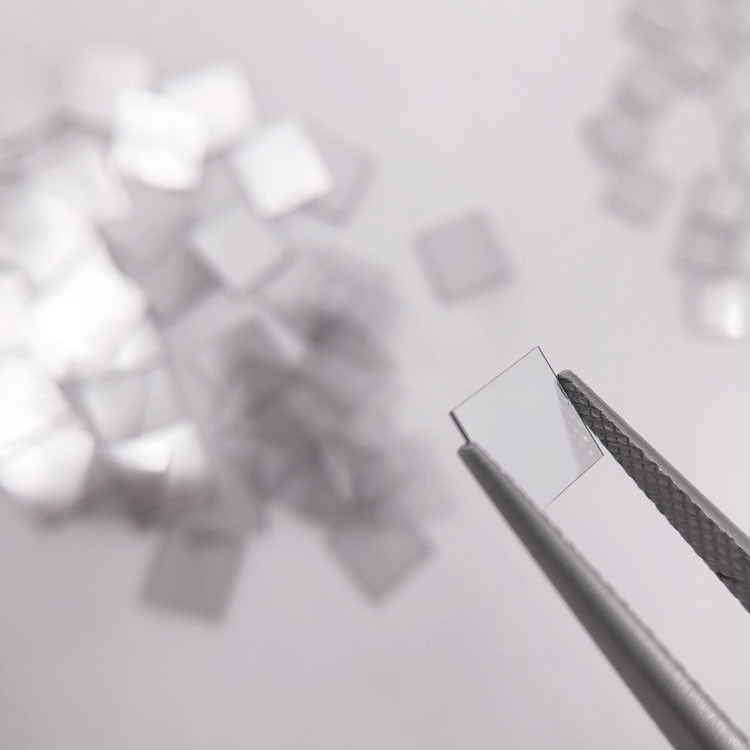

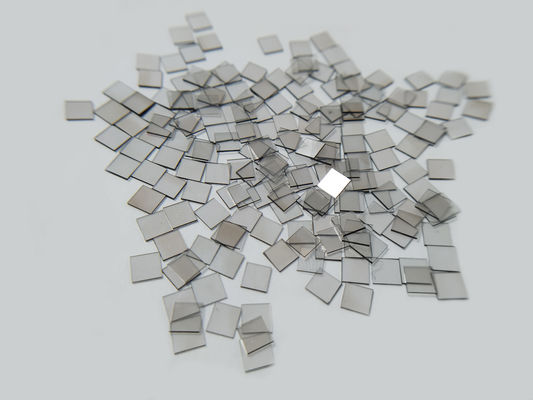

Product image:
Grade:
More queries please contact us directly:
Size of CVD diamond plates:
Normal size of CVD diamond plates:
| 3*3*1mm | 4*4*1mm | 5*5*1mm | 6*6*1mm | 7*7*1mm | 8*8*1mm |
| 3*3*0.5*mm | 4*4*0.5mm | 5*5*0.5mm | 6*6*0.5m | 7*7*0.5mm | 8*8*0.5mm |
| 4*2*1mm | 5*3*1mm | 5*4*1mm | 6*3*1mm | 6*4*1mm |
6*3*1mm 12*12*1mm |
| 8*8*0.3mm | 9*9*0.3mm | 10*10*0.3mm | 12*12*0.3mm | 14*11*0.4mm | 15*15*0.5mm |
Thickness of diamond plates:from 0.3mm to 2mm
Packing and shipping:
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
