| Place of Origin: | Hunan, China |
| Brand Name: | Infi |
| Certification: | Non Certificate |
| Model Number: | JSD |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Color: | Light Brown, White | Shape: | Round, Square, Rhombus |
|---|---|---|---|
| Size: | 15*15*0.4mm | Customized Support: | OEM, ODM |
| MOQ: | 5 Pcs | Hardness: | 130Gpa |
| Material: | Synthetic CVD | ||
| Highlight: | 15x15mm Lab Grown CVD Diamond Seeds,Optical Grade Lab Grown Diamond Seeds,Optical Grade CVD Synthetic Diamond |
||
| Product name | 15x15x0.4mm CVD diamond seeds |
| Type | blasting media |
| Usage | growing cvd |
| Available Shape | Round, square, rhombus |
| Color | light brown, white |
| Availalbe size | 15*15*0.4mm |
| Available thickness | 0.4mm |
| Application | growing cvd diamond |
| Advantage | High Compressive Strength |
| Material | Synthetic CVD |
| Grade | High Grade |
| Customized support | OEM, ODM |
| Diamond Type | Synthetic (lab created) |
| orientation | 110 100 |
| Diamond Enhancements | Seeds |
Application of optica grade CVD:
1, Laser Optical Components for lasers, including laser resonators, output windows,and mirrors.
2, Optical Windows and Lenses, including telescopes, cameras, and other sensors.
3 nterferometer Elements including high-precision mirrors, beam splitters, andgratings
4, Optical Sensors,including spectrometers, optical scanners, and photodetectors.
5, Astronomical Observations
6, Fiber Optic Communication, optical couplers, modulators, and demodulators; among other components.7,High-Precision Optica Measurements such as interferometers and Raman:spectrometers.8,Medical imaging equipment, such as endoscopes, optical microscopes, and medical:laser devices9Laser etching equipment.
CVD diamond (also known as Synthetic diamond, Chemical vapor deposition diamond, laboratory-grown diamond, laboratory -created diamond )is diamond produced in an artificial process, as opposed to natural diamonds, which are created by geological processes.
The advantages of CVD diamond growth include the ability to grow diamond over large areas and on various substrates, and the fine control over the chemical impurities and thus properties of the diamond produced. Unlike HPHT, CVD process does not require high pressures, as the growth typically occurs at pressures under 27 kPa

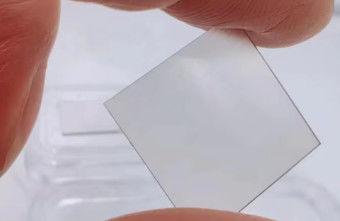

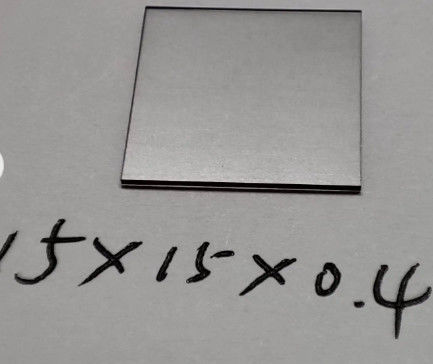

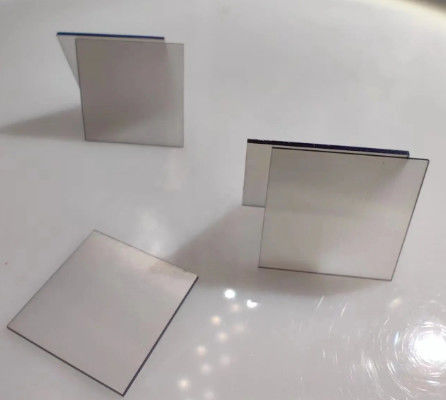

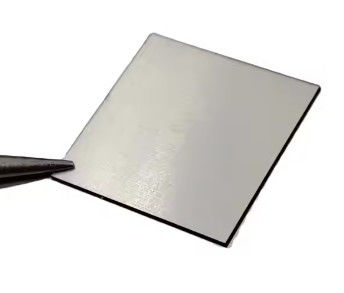

Product image:
Grade:
More queries please contact us directly:
Size of CVD diamond plates:
Normal size of CVD diamond plates:
| 3*3*1mm | 4*4*1mm | 5*5*1mm | 6*6*1mm | 7*7*1mm | 8*8*1mm |
| 3*3*0.5*mm | 4*4*0.5mm | 5*5*0.5mm | 6*6*0.5m | 7*7*0.5mm | 8*8*0.5mm |
| 4*2*1mm | 5*3*1mm | 5*4*1mm | 6*3*1mm | 6*4*1mm |
6*3*1mm 12*12*1mm |
| 8*8*0.3mm | 9*9*0.3mm | 10*10*0.3mm | 12*12*0.3mm | 14*11*0.4mm | 15*15*0.5mm |
Thickness of diamond plates:from 0.3mm to 2mm
Packing and shipping:
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
