| Place of Origin: | Hunan, China |
| Brand Name: | Infi |
| Certification: | Non Certificate |
| Model Number: | JSBD |
| Minimum Order Quantity: | 1-10PCS |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | Plastic bag, opp bag or as request. |
| Delivery Time: | 3-7 Work days |
| Payment Terms: | T/T, Western Union, D/A, L/C |
| Supply Ability: | 5000 Carat/Carats per Month Single crystal synthetic diamond plates |
| Color: | Yellow | Type: | HPHT |
|---|---|---|---|
| Size: | 3*3*1 | Hardness: | Mohs 10 |
| Warranty: | 3 Years | Abrasive Grain Sizes: | Requirment |
| Highlight: | HPHT High Pressure High Temperature Diamond,MCD High Pressure High Temperature Diamond,Polished 2PT Diamond |
||
| Product name | 3*3*1 MCD HPHT polished diamond plate 4 side 110 face |
| Model | JSBD |
| Color: | Yellow |
| size | 3*3*1 |
| Crystal growth process | HPHT |
| Usage | Polishing |
| length | 2.0-7.0mm |
| Thickness | 0.3-2.0+mm |

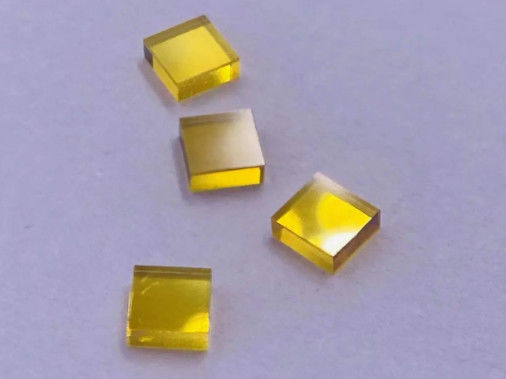

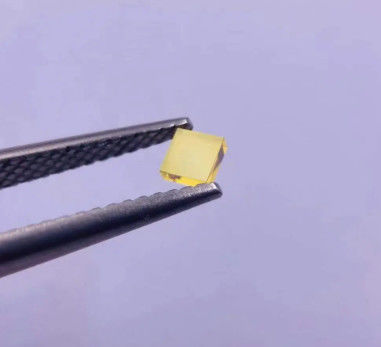

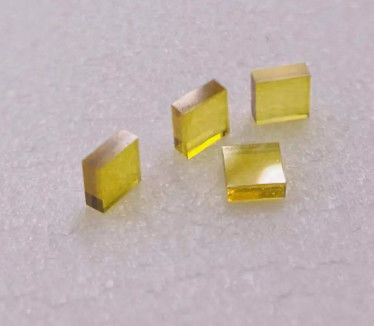

3*3*1 MCD HPHT polished diamond plate 4 side 110 face
Single crystal diamond (SCD) series are synthetic diamonds made by HTHP (high temperature and high pressure) synthesis, to ensure sizes and stability of physical properties, longer growth time and extreme conditions are required when comparing with saw grade synthetic diamodnd.
SCD series products are the best choices for high precision cutting tools processing nonferrous metals and non-metal materials, high precision dressers for wheel dressing, wear parts and wire drawing dies.
SCD series oriented on the crystallographic {100} are used for cutting tools and wear parts, with sizes:
2*2, 3x3mm, 4x4mm, 5x5mm, 6x6mm,
thickness ranges from 0.3-2+mm.
Features for HPHT single/monocrystal synthetic diamond plates
1. Regular and irregular square shape
2. Straight edges
3. High hardness and stength, great thermal stability
4. High impact resistance
5. Good diaphaneity
Available sizes:

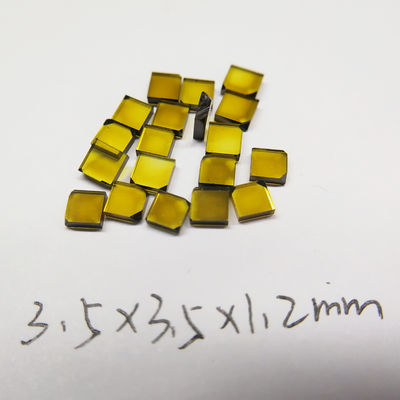

2.5*2.5*1.1mm, 3.0*3.0*1.5 mm
3.0*3.0*2mm, 3.5*3.5*1.1mm, 4*4*1mm,4.0*4.0*1.1mm, 4.5*4.5*1.1mm,5.0*5.0*1.1mm,
7.0*7.0*4mm
Packing and shipping:
| Packaging Details | Plastic bag, opp bag or as request. |
| Port | Changsha |
| Single package size: | 18X18X15cm |
| Single gross weight: | 0.500 kg |
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation
Transportation: DHL, TNT, Fedex, UPS or as per your request.
