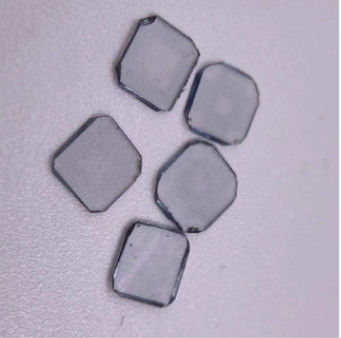

Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates

Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates

  • Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates
  • Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates
  • Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates
  • Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates
Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates
Product Details:
Place of Origin: Hunan, China
Brand Name: Infi
Certification: Non Certificate
Model Number: Null
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description
Porduct Name: Blue HPHT Mono Diamond Color: Blue
Shape: Unregular Square Avaialbe Size: 3x3mm, 4x4mm, 5x5mm, 6x6mm
Available Thickness: 0.3mm, 0.5mm, 1mm
Highlight:

Single Crystal Boron Doped Diamond

,

Mono Boron Doped Diamond

,

CVD HPHT Diamond Plate

Blue HPHT Mono Diamond Blue Diamond Plates Single Crystal Boron Doped Diamond Square Substrate CVD Diamond Seeds

When boron is added into pure diamond, the conductivity, corrosion resistance and oxidation resistance of boron containing diamond are greatly improved compared with ordinary diamond crystals

The boron content in boron containing diamond crystal is generally very low, but it has a significant effect on improving and improving the properties of diamond crystal.


Product details:

Crystal growth process: HPHT single crystal
Color: Light blue
Diamond type: IIa
Benefits:

① Color: under the microscope, diamond is colorless, blue or black due to different boron content and concentration.

Blue diamond crystal is used as semiconductor material in electronic industry and blue diamond in jewelry industry. Other colored crystals are commonly used as abrasive and tool materials.

② Heat resistance: the initial oxidation temperature of boron containing diamond is 150 ℃ ~ 250 ℃ higher than that of ordinary diamond.
③ Impact toughness: Black boron bearing corundum tools have good impact toughness. Turning tools rarely break when cutting eutectic silicon aluminum alloy, powder titanium alloy, FRP and other materials under intermittent load.
Orientation: 4pt/100 3pt/111
Shape: Near square/ Near triangle
Lateral Dimensions Measured to smaller side
Edges Grow
Lateral Tolerance: +0.5/-0 mm
Roughness, Ra Two sides polished, Ra < 30 nm
Thickness Tolerance +/- 0.05 mm
Boron Concentration [B]: 1E18

Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates 0Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates 1

Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates 2Single Crystal Boron Doped Diamond Substrate Blue Mono CVD HPHT Diamond Plates 3



Packing and shipping:

Selling Units: Single item
Single package size: 20X15X15cm
Port: Changsha
Single gross weight: 0.100 kg





Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation


Transportation: DHL, TNT, Fedex, UPS or as per your request.
