| Place of Origin: | China |
| Brand Name: | Infi |
| Certification: | no centification |
| Model Number: | cs |
| Minimum Order Quantity: | 3pcs |
|---|---|
| Price: | 100+ |
| Packaging Details: | Carton packaging |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 30000 |
| Body: | Aluminium | Color: | Light Yellow And Dark Yellow |
|---|---|---|---|
| Diamond Size: | 1-7mm | Color: | Clear |
| Symmetry: | Excellent | Material: | Diamond |
| Shape: | Square | Clarity: | IF (Internally Flawless) |
| Model: | Diamond | Thickness: | 0.1-2mm |
| Highlight: | Industrial Grade Hpht Lab Diamond Plate,Lab Diamond For Mcd Cutting Tools,MCD Cutting Tools Hpht Diamond |
||

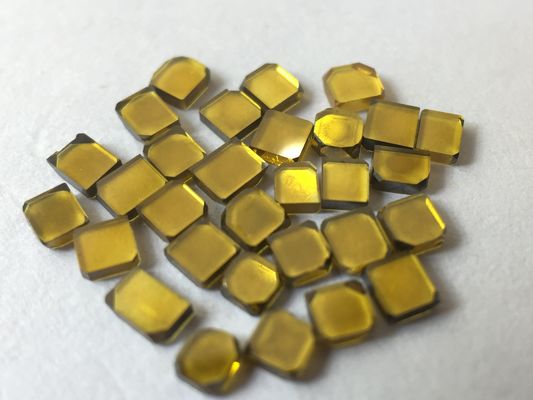

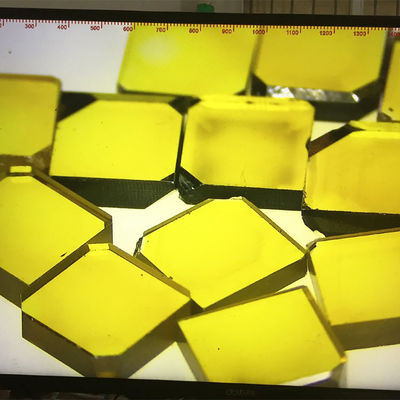

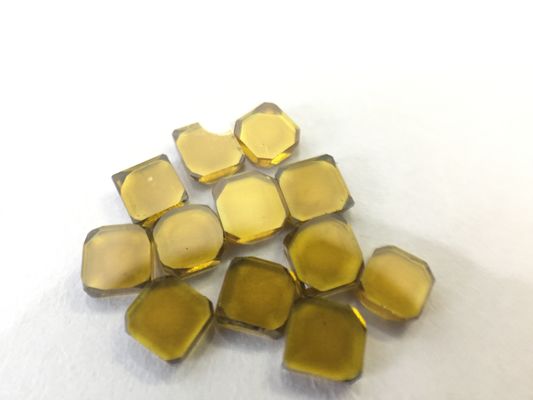

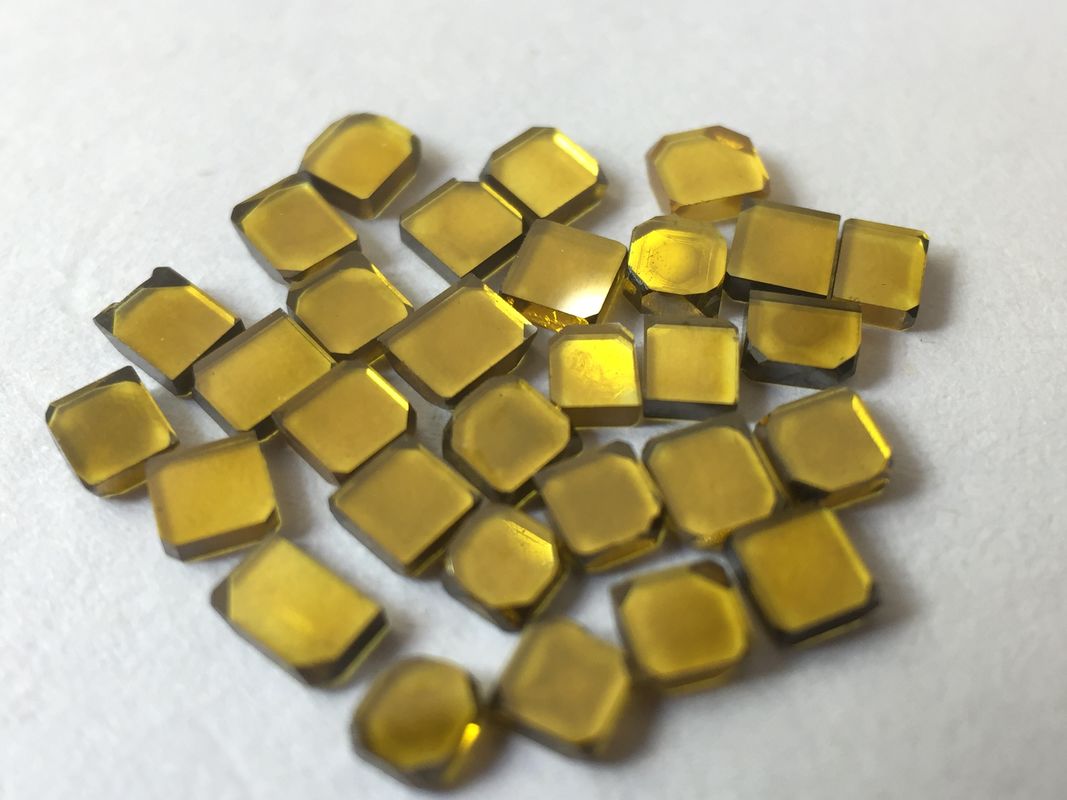

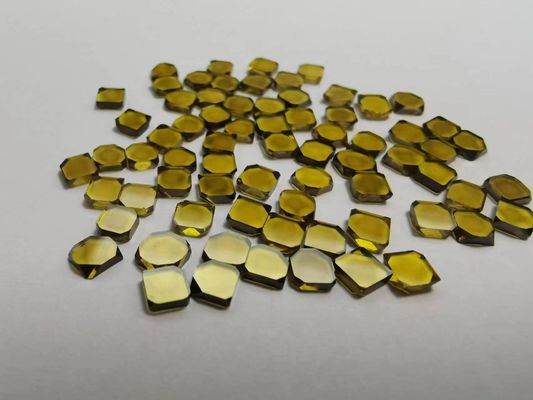

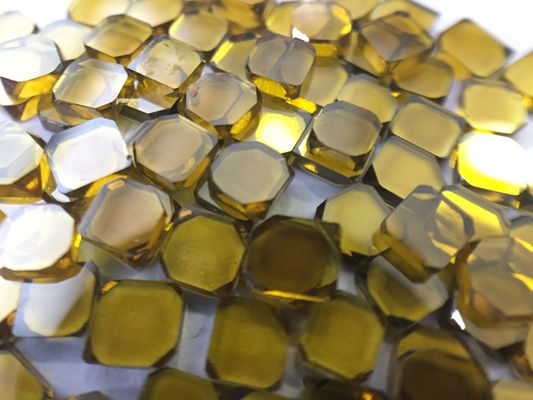

wholesale mono hpht lab diamond for mcd cutting tools Yellow Lab Grown Industry Diamond MCD Diamond Plate
Developed using HPHT technology (high pressure, high temperature), synthetic hpht monocrystal diamond (MCD) is achieved by combining a mixture of carbon and transitional metals at very high pressures and temperatures
Advantage of MCD Diamond :
High hardness and wear resistance
High efficiency and low cost
High surface finish can be obtained on your workpiece
Application :
Super finishing and Miller finishing for Aluminum, Copper, Brass,
Gold, Nickel (Other Non Ferrous metals),Ultra Precision Cutting,
Clear Plastics
Specification
| Suggested application | MCD Cutting Tools |
| Model: | JSD23 |
| Crystal growth process: | Single crystal HPHT |
| Color: | Yellow and dark yellow |
| Usage | Cutting tools |
| sample | HPHT diamond for cutting tools |
| Quality | High quality |
| content | C |
| Feature | Wear Resistant |
| Applied fields | Industry |
| Orientation: | 4pt/100 |

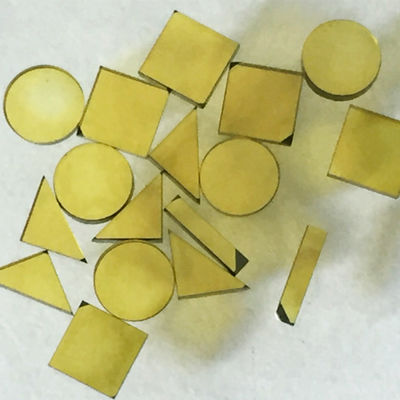

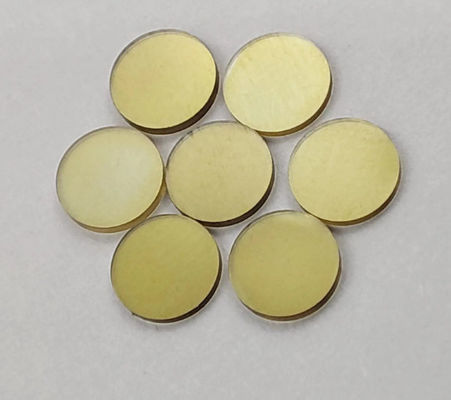

| Shape: | Square or round |
| Size range: | 1.0mm -7.0 mm |
| Lateral Dimensions Measured | to smaller side |
| Edges | Natural growth |
| Edge Orientation | <100> edges |
| Corner Orientation | <111> |
| Face Orientation | {100} faces |
| Lateral Tolerance: | ‘+0.5/-0 mm |
| Surface Roughness, Ra | Polished, Ra < 30 nm |
| Thickness Tolerance | +/- 0.05 mm |
Shipping Deatils:
| Place Of Origin | Hunan. China |
| Delivery Time | 1 - 15 Working Days Base on Order Quantity |
| Payment Terms | 100% Payment In Advance |
| Shipping way | DHL.FedEx, SF Express,UPS,EMS,TNT etc |
| M.O.Q | Negotiable |
| Port | main port in China |
FAQ
Q1:How is your quality?
A1: We have a very seriously control system. We guarantee the high performance of our products
Q2:What is the Warranty for your products?
A2:For one year from the date of purchase, lf any problem on our side, we wil make prompt response, and take the shipping cost and send replacement
Q3.:Do you have different quality for different kind of stone?
A3: Yes, according hardness of stone and stone's feature, we have different typology respectively
Q4:lf we need technical support, can you offer us?
A4:Yes, we have an experienced team, offering our customers additional benefts with specifc advice, by our product management staff, enginers and technicians
Q5:How can we be your agent in our country?
A5: Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you
Q6: Do you offer free samples?
A6: Normally we do not offer free samples, but we guaranty our product's quality.
