| Brand Name: | Chenguang |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Available Size: | 1-50mm | Material: | Diamond |
|---|---|---|---|
| Thermal Conductivity: | Highest Thermal Conductivity Of Any Material (2000-2500 W/mK) | Hardness: | Extreme Hardness (10 On Mohs Scale) |
| Electrical Conductivity: | High Electrical Resistivity | Biocompatibility: | Biocompatible And Non-toxic |
| Applications: | Widely Used In Industrial, Scientific, And Medical Applications | Production Method: | Chemical Vapor Deposition (CVD) |
| Thickness: | Can Be Grown To Desired Thickness | Size: | Available In Various Sizes And Shapes |
| Purity: | High Purity (>99.9%) | Wear Resistance: | Excellent Wear Resistance |
| Highlight: | High Hardness Polycrystalline CVD Diamond,Polycrystalline CVD Diamond Thermal Spreader,Synthetic CVD Diamond Thermal Spreader |
||

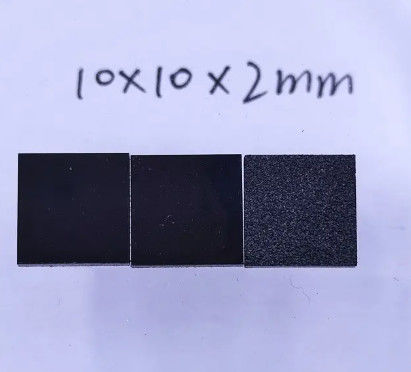

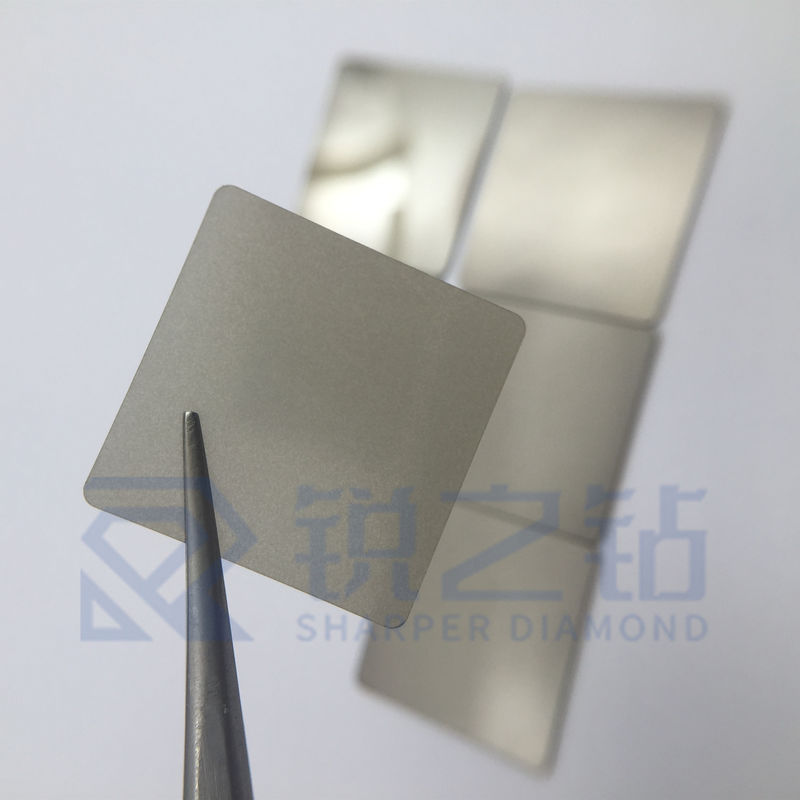

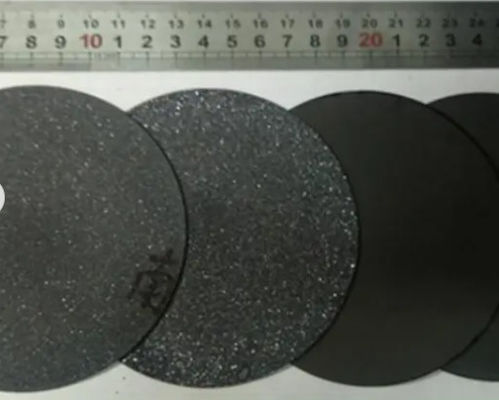

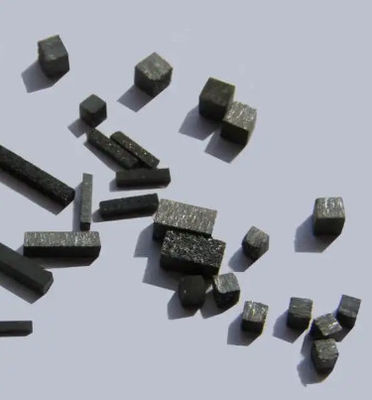

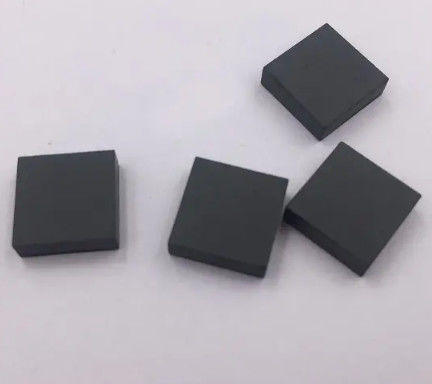

Polycrystalline Chemical Vapor Deposition (CVD) diamond is a synthetic diamond material produced through a process called chemical vapor deposition. In this method, carbon-containing gases are decomposed at high temperatures, and the carbon atoms are deposited onto a substrate, forming a polycrystalline diamond layer. Unlike single-crystal diamonds, polycrystalline CVD diamond consists of numerous small diamond crystals, giving it unique properties.
Key Properties:
High Hardness: Comparable to natural diamond, making it extremely wear-resistant.
Excellent Thermal Conductivity: Ideal for heat dissipation in high-power applications.
Chemical Inertness: Resistant to most chemicals, suitable for harsh environments.
Electrical Insulation: Useful in electronic applications.
Applications:
Industrial Cutting and Grinding Tools: Due to its exceptional hardness, it is used in cutting, drilling, and grinding tools for machining hard materials.
Thermal Management: Its high thermal conductivity makes it ideal for heat spreaders in electronics, such as in high-power lasers and LED devices.
Optical Windows: Polycrystalline CVD diamond is used in infrared windows and lenses due to its transparency and durability.
