| Place of Origin: | China |
| Brand Name: | Infi |
| Certification: | no centification |
| Model Number: | cs |
| Minimum Order Quantity: | 3pcs |
|---|---|
| Price: | 100+ |
| Packaging Details: | Carton packaging |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 30000 |
| Color: | Black | Diamond Size: | 1-20mm |
|---|---|---|---|
| Thickness: | 0.2-2mm | Symmetry: | Excellent |
| Material: | Diamond | Shape: | Any Shape |
| Model: | Polycrystalline Cvd Diamond BDD | ||
| Highlight: | Electrochemical Treatment BDD Diamond,Pure CVD Polycrystalline BDD Diamond |
||

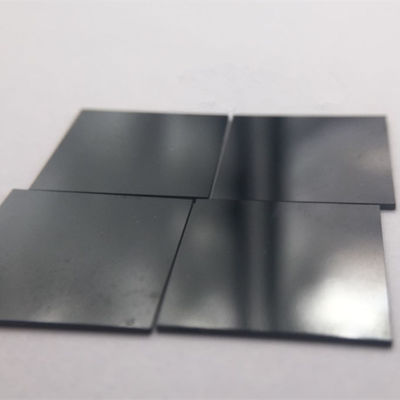

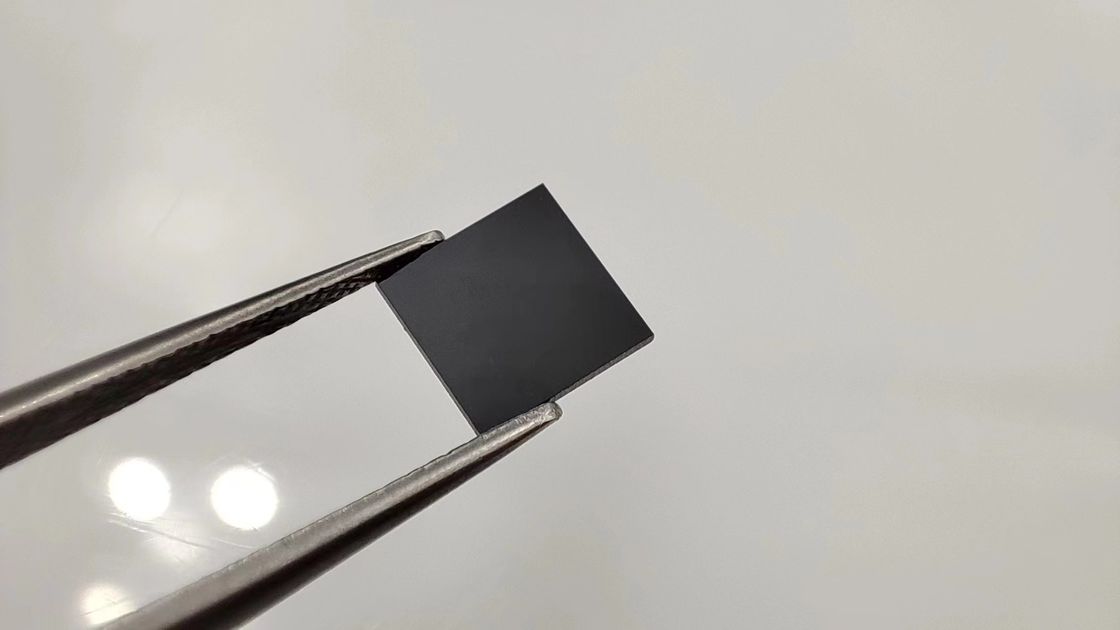

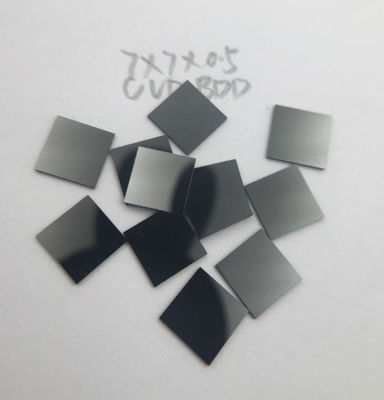

Pure CVD Polycrystalline cvd BDD Electrodes for Electrochemical Treatment of Sewage Chemical Waste water Treatment
Description of CVD diamond:
|
Product |
Dimensions |
Application |
|

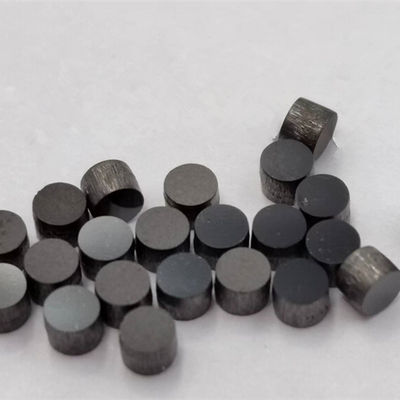

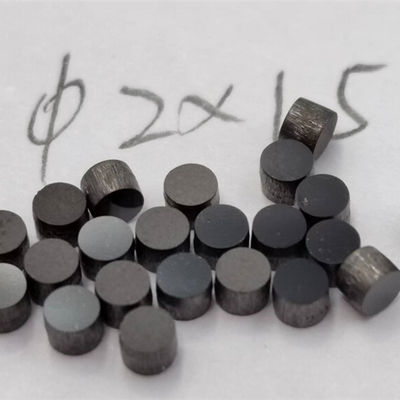

CVD diamond round |
30*30mm thickness: 0.2*1.5mm |
|
|
CVD diamond dresser bar |
Thickness*Width*Length 0.6mm*0.6mm*3-8mm 0.8mm*0.8mm*3-8mm 1mm*1mm*3-8mm 1.5mm*2mm*3-8mm 2mm*2mm*3-8mm |
Dressing tools |
|
CVD diamond Wafers |
Diameter: up to 120mm Avaliable polish: single side or double side |
|
|
CVD diamond Heat Spreaders
10*10mm² |
Thickness: 0.2*0.8 mm² Avaliable polish: single side or double side |
Cooling of High-Power Electronic Devices. e.g: Laser Diodes |
|
CVD diamond Cubes/Block |
Thickness*Width*Length 0.8mm*0.8mm*0.8mm |
dressing tools |
|
CVD diamond Die Blanks |
Shape: Hexagon Inscribed circle Dimension*Thickness( mm² ) 1.5*0.7, 1.5*0.8, 2.0*0.8, 2.0*1.0
|
Drawing die |
|
CVD diamond / WC piece |
Triangle, Thickness: 1.6mm diamond layer thickness: 0.3mm-0.7mm Angle*Side Length: 90º*4.5mm, 80º*4.5mm, 70º*4.5mm, 35º*4.5mm |
Machining non-ferrous,plastics, and composite materials |

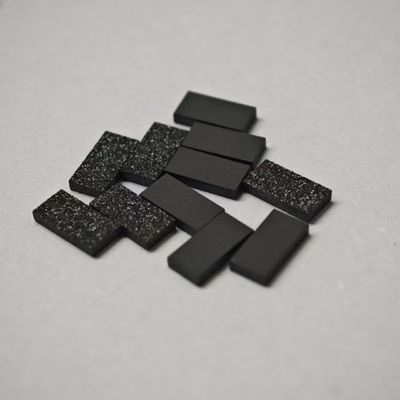

1). CVD dress bar
With excellent thermal properties, CVD diamond dresser is supplied as small durable "bars" , which integrate well into traditional dresser manufacturing techniques.
Its polycrystalline nature means there is no requirement for special orentations to be set.
Since dressing ability is unaffected by the diamond orientation in the dressing tool
CVD(Chemical vapor diamond) dress bar
2). CVD diamond Cubes
Widely used in making wheel dresser
3). CVD compound
Adopts the high qulity fine size CVD diamond, welded them hard with WC to make high precision machine tools.
It is close to crystal diamond in luminance and life time of cutting tools.
4). CVD Diamond Wafer
The thick film-supported CVD diamond material can be used in machine cutters, diamond dressers,
diamondwire drawing die blanks, electronic components heat spreaders and other fields.
5). CVD diamond Heat Spreaders
Product Descrption:
Size:- 1X 1 mm to 20 X 20 mm,
Thickness:- 0.3mm to 3mm
Grade and application
Surface
Type/Orientation
Edges
Advantages
Detailed Images
