Triangle Prism Optical CVD Diamond 6-Side Polished High Transparency Loose Mono Crystal Diamond

CVD single crystal diamond properties:

Since CVD diamond does not contain any metal catalysts, its thermal stability is close to that of natural diamond. Like high temperature and high pressure artificially synthesized polycrystalline diamond, CVD diamond grains are also arranged in disorder, without brittle cleavage planes, so they are isotropic.

Diamond has an exceptionally high transmission over a very broad range of wavelengths and low scatter in IR applications. It is extremely hard and chemically inert; making CVD diamond the optimal choice in applications demanding higher power, larger area, and resistance to hazardous materials or greater strength.  These abilities also enable smaller material geometries to be used, which opens up new lightweight applications.  Advances in the creation and shaping of diamond enable us to provide solutions to novel optical problems.

Application

Key product features:

Size Available:

Benefits:	Available in both SC (up to 7.5 mm sq) — Thicknesses up to 1.2 mm Surface roughness down to 2-3 nm Ra for SC and 10 nm Ra for poly Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree Cut in a variety of shapes and sizes, including lenses and prisms Diamond’s exceptional properties provide benefits in a variety
Orientation:	2PT/110. 4pt/100
Shape:	Circle ,Square,triangle, Trapezoid,
Size availability:	Available in both SC (up to 15 mm sq) — Thicknesses up to 1.2 mm Surface roughness down to 2-3 nm Ra for SC and 10 nm Ra for poly Wedged or flat—wedged for the suppression of interference oscillations. Wedge angle: 0.5 to 1 degree Mounted in flange or free-standing Cut in a variety of shapes and sizes, including lenses and prisms Diamond’s exceptional properties provide benefits in a variety
Length	2-15mm
Width	2-15mm
Thickness Dimension	0.05-0.3
Crystallographic Orientation (Miscut)	+/- 3°
Crystallography	Typically 100% single sector {100}
Lateral Dimensions Measured	to smaller side
Edges	Laser Cut
Edge Features	< 0.2 mm
Edge Orientation	<100> edges
Face Orientation	{100} faces
Laser Kerf	3-5°
Lateral Tolerance:	+0.05/-0.05mm
Flatness	Within 2µm
Parallelism :	10-20um
Side 1, Roughness, Ra	polished, Ra < 10 nm
Side 2, Roughness, Ra	polished, Ra < 10 nm
Thickness Tolerance	+/- 0.05 mm
Boron Concentration [B]:	<0.05ppm
Nitrogen Concentration:	< 10-50 ppm
Refractive Index (10.6 µm) (1):	1064nm:2.392       600nm:2.415
Thermal Conductivity:	typically 1000+Wm-1K-1
Transmission:	Transmittance :1064nm:＞65%                               8μm～25μm:＞70%

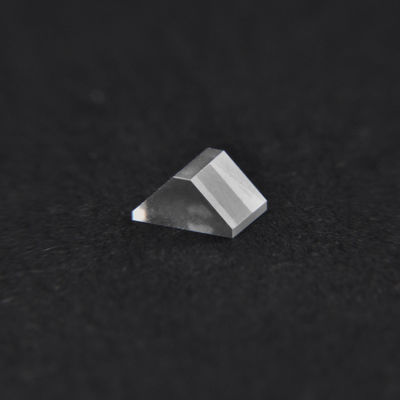

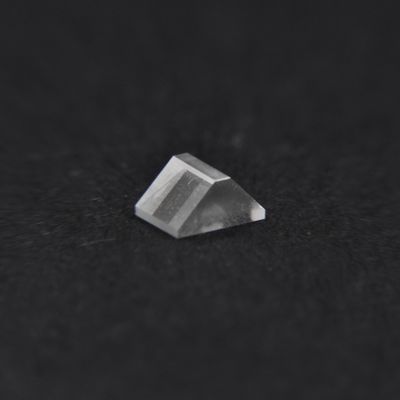

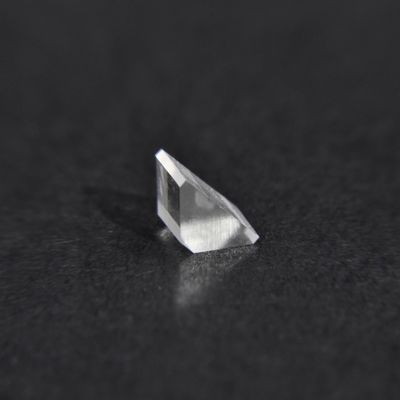

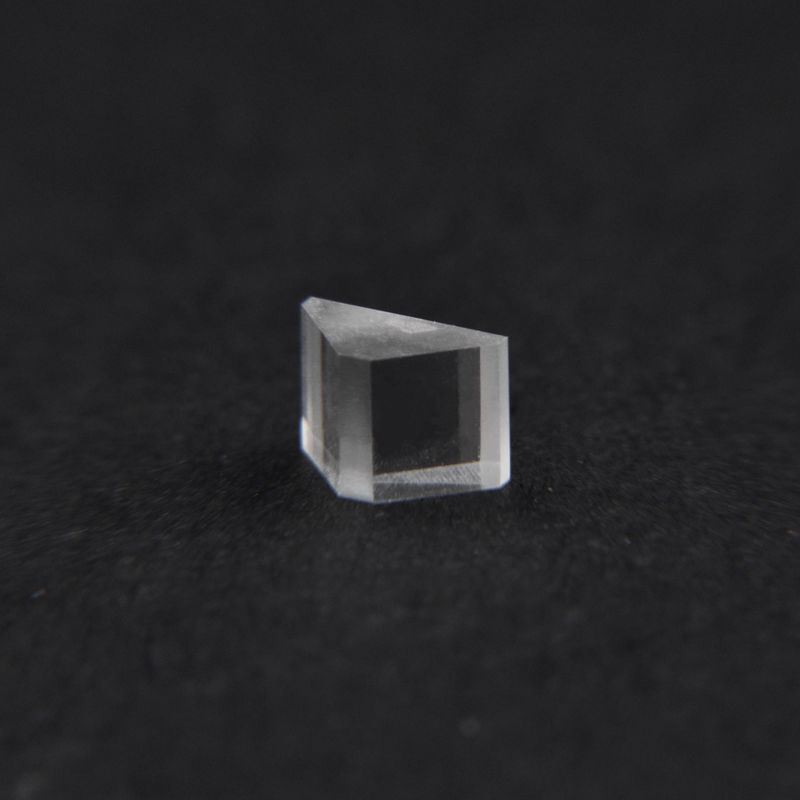

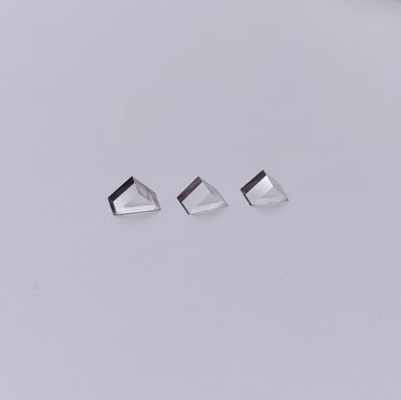

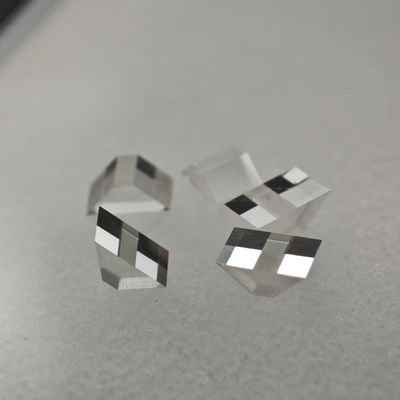

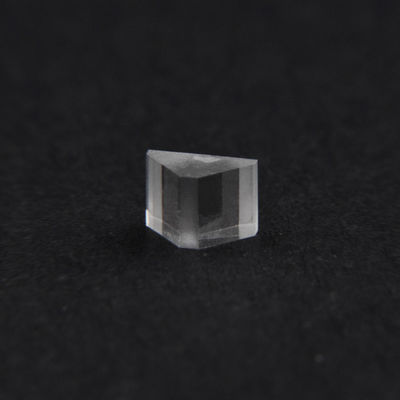

Picture details:
