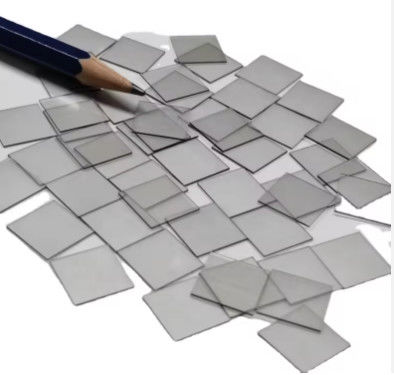

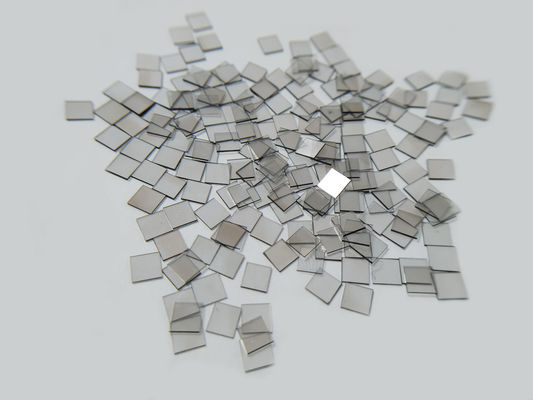

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick
video
Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick
Product Details:
Place of Origin: China
Brand Name: Infi
Certification: no centification
Model Number: cs
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: To be negotiated
Packaging Details: packed in box then into carton
Delivery Time: 7 working days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 100pcs/7days
Contact Now
Detailed Product Description

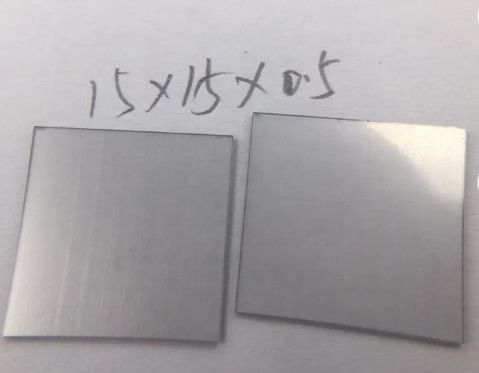

Color: CVD White Colorless Diamond Size: 15*15 17*17 20*20
Color: Clear Symmetry: Excellent
Material: Diamond Shape: Square
Clarity: IF (Internally Flawless) Length: 1-20mm
Height: 0.1-3mm Transmission: 70%
Highlight:

Single Crystal Substrate CVD Diamond

,

Semiconductor Single Crystal CVD Diamond

,

IIA Ultra Thin Cvd Grown Diamond

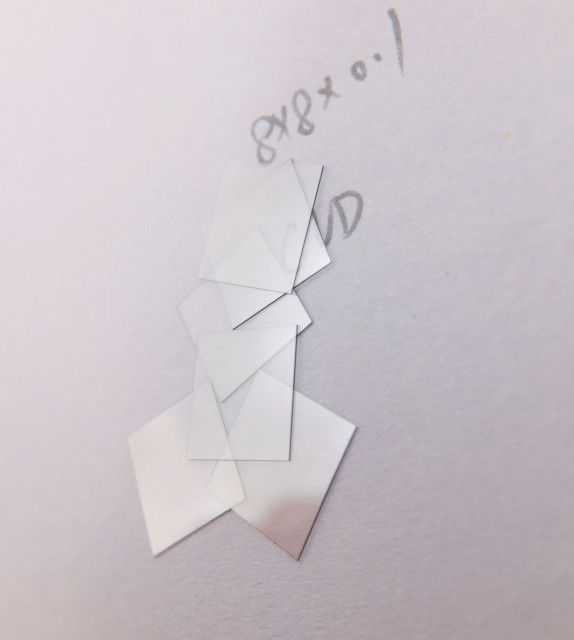

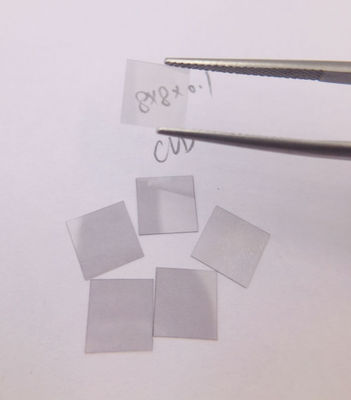

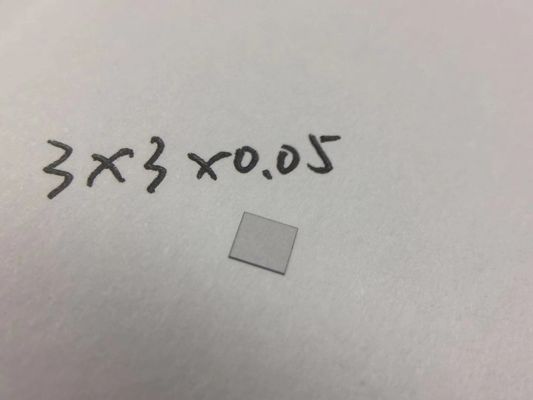

 IIA Ultra-thin 100 micron thick Semiconductor Single Crystal Substrate Cvd Diamond 3*3*0.05

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick 0 Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick 1

 Product Descrption:

MONO/SINGLE CRYSTALLINE CVD diamond



Size:- 1X 1 mm to 20 X 20 mm,

Thickness:- 0.3mm to 3mm



Grade and application

Surface

  • As Grown or Laser Cut
  • Polished (Ra< 5nm, Flatness < 1 fringes @ 633nm)
  • Lapped (Ra< 200nm, Flatness < 1 fringes @ 633nm)

Type/Orientation

  • Top (100), Customized for Scalpels (based on 2 and 4 point configuration)
  • Customized shapes (based on given designs)

Edges

  • Laser cut or polished








Advantages

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick 2




1. Large size
2. Hardness and high mechanical stability
3.  Scratch proof and wear resistance.
4. Wide spectral transparency UV to THz
5. High Strength and Great Thermal Stability
6. White Color (from brown to colorless)
7. Other quality index could reach the international standard.




Detailed Images



Cube Cvd Diamond Optical Prism with Low Nitrogen 1-10ppm 6 Side Polished 2*2*2

Our Service

Semiconductor Single Crystal Substrate CVD Diamond IIA Ultra Thin 100 Micron Thick 4
