| Place of Origin: | China |
| Brand Name: | Infi |
| Certification: | no centification |
| Model Number: | cs |
| Minimum Order Quantity: | 3pcs |
|---|---|
| Price: | 100+ |
| Packaging Details: | Carton packaging |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 30000 |
| Color: | Black | Diamond Size: | 1-200mm |
|---|---|---|---|
| Thickness: | 0.3-2mm | Symmetry: | Excellent |
| Material: | BDD Diamond | Shape: | Square Or Irregulare |
| Model: | Diamond+ Si | ||
| Highlight: | Waster Water Treatment BDD Electrode,Conductive Pure Water BDD |
||

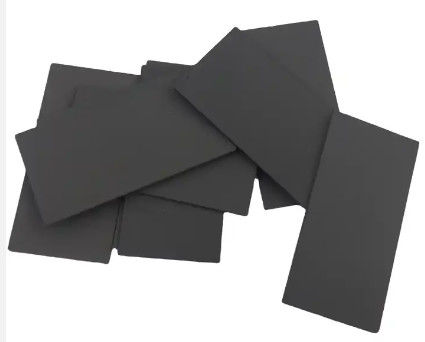

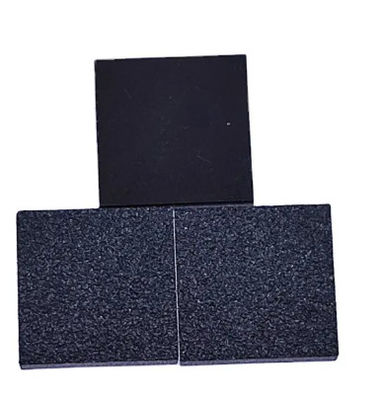

Boron doped CVD diamond BDD electrode for waster water treatment Conductive
BDD electrodes can effectively degrade various organic waste water, such as organic waste water in the fields of medicine /agrochemicals, petrochemicals, coking, smelting, printing and dyeing,
papermaking, tanning, explosives, wine making, landfill leachate, etc.
Size available: 1-200mm
| No. | Product Name | Substrates | Specs | Unit |
| 1 | BDD Electrode | Silicon, single side coated | 5*5*0.55mm | Piece |
| 2 | BDD Electrode | Silicon, double side coated | 5*5*1.0mm 2 holes open |
Piece |
| 3 | BDD Electrode | Silicon, double side coated | 5*5*1.0mm 4 holes open |
Piece |
| 4 | BDD Electrode | Silicon, double side coated | 8*6*1 Slotting |
Piece |
| 5 | BDD Electrode | Silicon, double side coated | 7*7*0.5mm | Piece |
| 6 | BDD Electrode | Silicon, single side coated | 10*10*0.625mm | Piece |
| 7 | BDD Electrode | Silicon, double side coated | 10*10*0.625mm | Piece |
| 8 | BDD Electrode | Silicon, double side coated | 10*10*0.5mm | Piece |
Under the same conditions, the efficiency and energy consumption of BDD electrodes in degrading organics are significantly better than other electrodes
Although using P b O 2 plates or P t nets as anodes can effectively generate ozone, they have disadvantages such as low durability, high price, and harmful effects to the environment. Boron-doped diamond (B D D) electrodes have also been reported to produce ozone without the use of any electrolyte. The applications of B D D in extreme electrochemistry, such as wastewater treatment and the synthesis of hydroxyl, have been well documented. Due to its excellent chemical and physical stability, B D D is used in ozone-generated anode materials.
CVD diamond BDD Application:
