| Place of Origin: | China |
| Brand Name: | Infi |
| Certification: | no centification |
| Model Number: | cs |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Material: | Diamond + Steel/tungsten Steel | Usage: | Cutting |
|---|---|---|---|
| Cutting Speed: | High | Cutting Edge Radius: | 0.1mm-0.5mm |
| Compatibility: | Suitable For High Speed Machining | Cutting Edge Sharpness: | High |
| Cutting Edge Durability: | Excellent | Surface Finish: | Mirror Finish |
| Application: | Precision Cutting | Cutting Edge Type: | Single Crystal Diamond |
| Cutting Edge Angle: | 90° | Manufacturer: | MCD Diamond Tools |
| Size: | 1mm-10mm | ||
| Highlight: | Mirror Finish MCD Diamond Insert,High Speed Cutting MCD Diamond Insert |
||

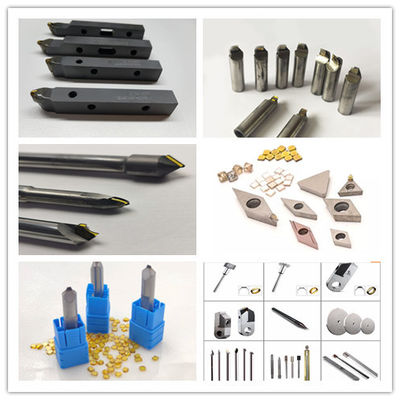

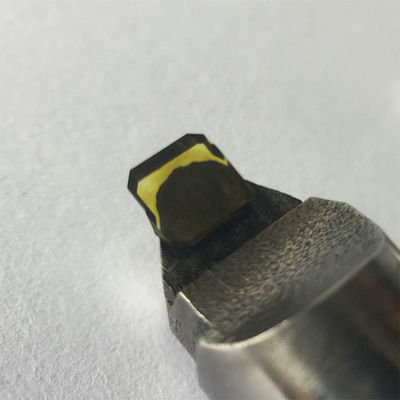

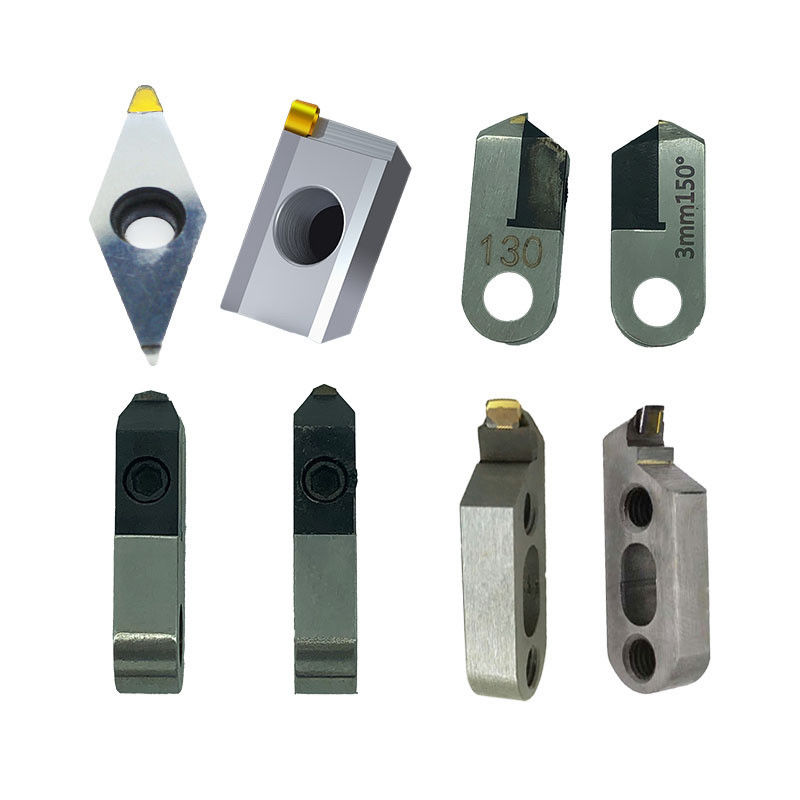

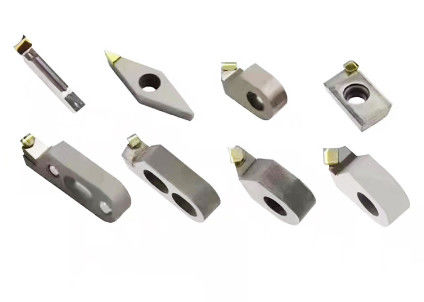

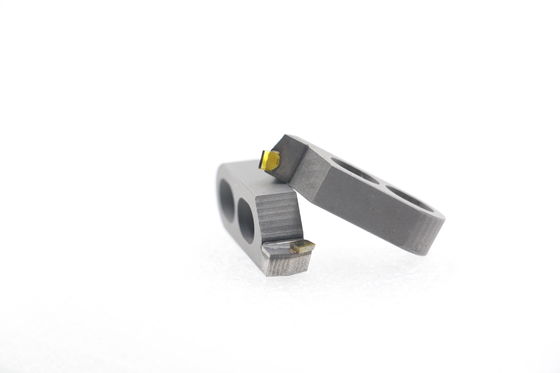

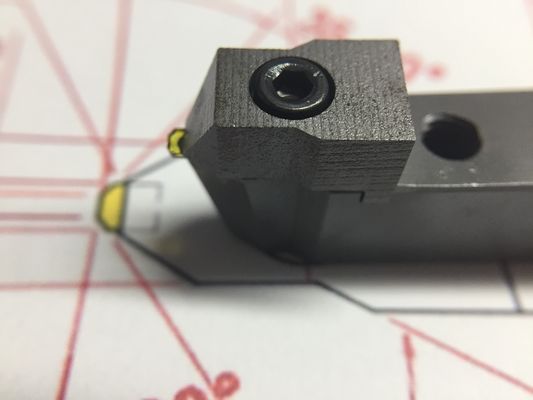

Diamond single crystal MCD diamond cutting tool
Product Description
1. This turning insert with natural diamond is widely used in ultra precise mirror turning, milling and cutting, etc.
2. It can be specially designed and produced for customers' need.
3. The raw materials give it strong hardness and high performance
4. You can inquire us for the specifications.
Material: Single-Crystal Diamond (Mono-crystalline)
1 Physical characteristics
Diamond is a crystal of a single carbon atom, and its crystal structure belongs to the equiaxed face-centered cubic system (a system with the highest atom density). Since the bond between carbon atoms in diamond is sp3 hybrid covalent bond, it has strong binding force, stability and directionality. It is the hardest substance known in nature at present, its microhardness can reach 10000HV, and other physical properties are as follows.
Explain the physical properties of diamond
Physical properties - numerical values
Hardness -60,000 to 100,000 MPa, depending on crystal direction and temperature
Bending strength -210~490MPa
Compressive strength -1500~2500MPa
Elastic modulus - (9 ~ 10.5) × 10 12 power MPa
Thermal conductivity -8.4~16.7J/cm·s·°C
Mass heat capacity -0.156J/(g·°C) (normal temperature)
Start oxidation temperature -900~1000K
Start graphitization temperature -1800K (in inert gas)
Friction coefficient between aluminum alloy and brass -0.05 to 0.07 (at normal temperature)
2,Product advantages
Due to the physical properties of single crystal diamond, it is not easy to stick to the knife and produce built-up edge when cutting. The surface quality is good. When processing non-ferrous metals, the surface roughness can reach Rz0.1~0.05μm. Diamond can also effectively process non-ferrous metal materials and non-metallic materials, such as non-ferrous metals such as copper and aluminum and their alloys, ceramics, unsintered hard alloys, various fiber and particle reinforced composite materials, plastics, rubber, graphite, glass. And a variety of wear-resistant wood (especially solid wood and plywood, MDF and other composite materials).
>>Diamond cutting tools are easily damaged, so the cutting edge should be covered with rubber or plastic caps when they are not in use.
>>Store them in separate containers when not in usage.
>>When inspecting and setting up,plz use optical instruments if possible.
>>Use copper shimstock or plastic between the cutting tools and micrometers or height gauges. If these are used, to avoid breaking the cutting edge.
>>Don't bring the diamond into contact with the work in a stationary position or stop the machine during the cut.
>>High speed reduces cutting edge pressure; low speed increases it, causing diamonds to break down more rapidly.
Vibration also shortens tool life, so machine tools should be in good condition.
3,The more detail information about our diamond tip cutter:(as the following)
>>well performance,high quality
Single Crystal Diamond Cutting Tool,Monocrystalline synthetic diamond tools,Natural Diamond Tools
Monocrystalline synthetic diamond tools,synthetic diamond grooving tool
>>Single Crystal Diamond Cutting Tool,Monocrystalline diamond tools,Natural Diamond Tools
>>Monocrystalline synthetic diamond tools,Natural Diamond Tools,synthetic diamond grooving tool
>>Monocrystalline synthetic diamond tools perform extremely well for single point diamond turning of highly abrasive materials such as high silicon content aluminum.
__________________________________________________________________________________________________
Please let us know your needs and it would be better if you could bring a drawing.
We can provide you with the solution as soon as possible.
