| Place of Origin: | China |
| Brand Name: | Infi |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Material: | PCD MCD Diamond | Cutting Edge Resistance: | Chemical And Wear Resistance |
|---|---|---|---|
| Cutting Edge Versatility: | Suitable For Various Materials | Cutting Edge Durability: | Long-lasting |
| Cutting Edge Smoothness: | Mirror-like | Application: | Precision Cutting And Machining |
| Highlight: | 10x Lifespan MCD Jewelry Tools,Full Radius PCD Jewelry Tools,Multi Function PCD Jewelry Tools |
||

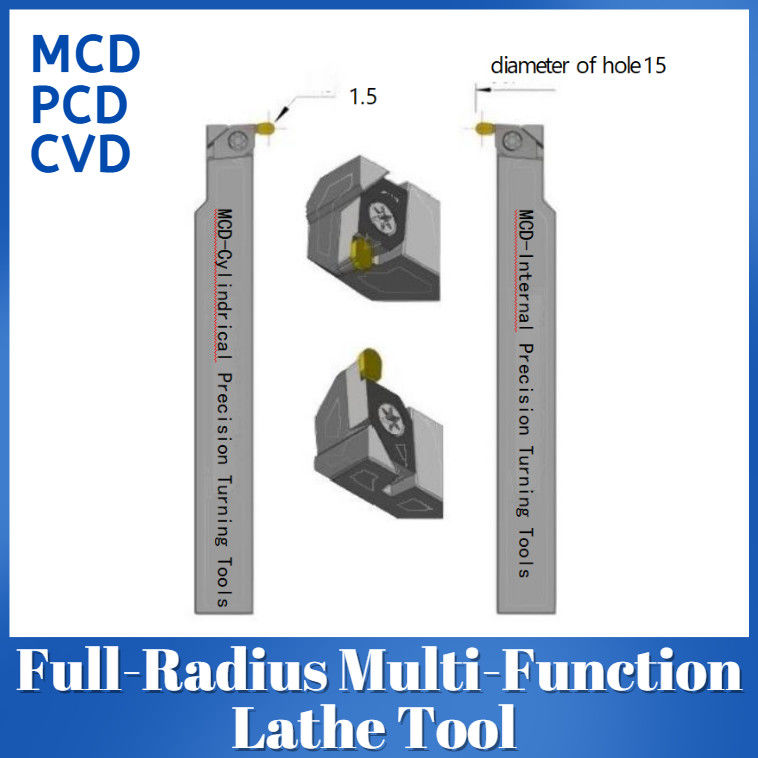

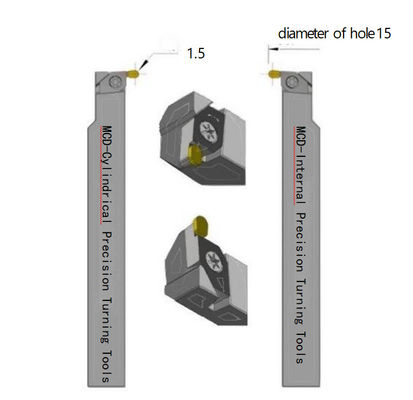

Full-Radius Multi-Function Lathe Tool | PCD/MCD/CVD
1. R&D Objective
Conventional CNC lathe tools typically use triangular inserts (35° included angle, R0.2mm tip radius) that cause critical limitations:
Overcutting on complex profiles
Visible Ra0.4-0.6μm surface marks requiring extensive post-processing
Material waste exceeding 12% in jewelry manufacturing
2. Features & Advantages
Full-Radius Geometry:
＞180° continuous cutting edge eliminates tool changes
Achieves Ra0.1-0.2μm mirror finishes
Omnidirectional Machining:
Single-tool solution for ID/OD roughing, finishing, chamfering
100% elimination of mismatch marks
Hybrid Material Design:
PCD for high-speed roughing (≤S15,000 RPM)
MCD/CVD for precision finishing
3. Applications

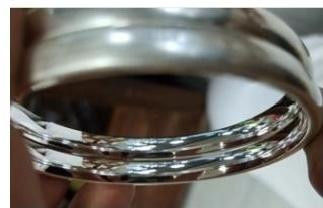

Round/oval bangle ID/OD machining
Ring band edge finishing (±0.02mm tolerance)
High-precision chamfering (0.1-0.3mm radius)
4. Tool Lifespan
10x longer vs traditional triangular inserts
Continuous 500+ hour operation in 18K gold turning
5. Performance Validation
95% material utilization rate
Zero post-polishing required for luxury jewelry
