| Place of Origin: | China |
| Brand Name: | Infi |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Highlight: | Monocrystalline Diamond End Mill,MCD Diamond End Mill,MCD Diamond End Mill Chamfer Cutter |
||
|---|---|---|---|
Key Advantages:
1. High-Efficiency Machining
2. Premium Material Selection
3. Extended Tool Lifespan
4. Customization Support
| item | value |
| Brand | Infi |

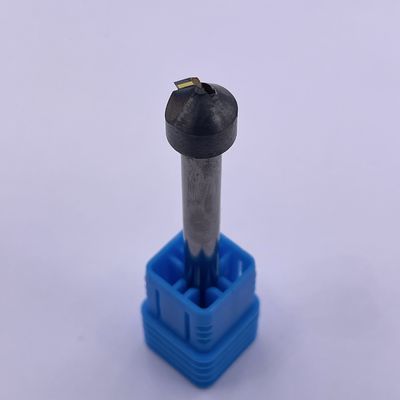

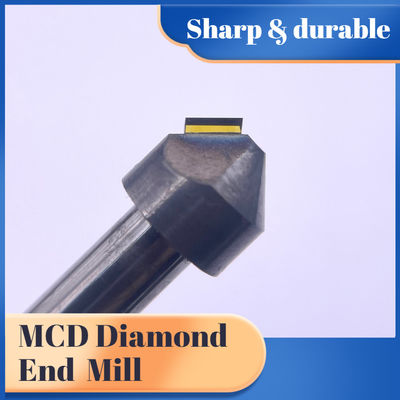

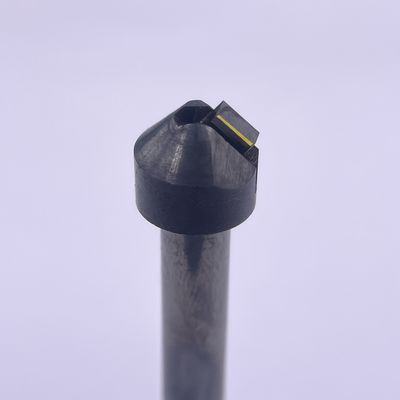

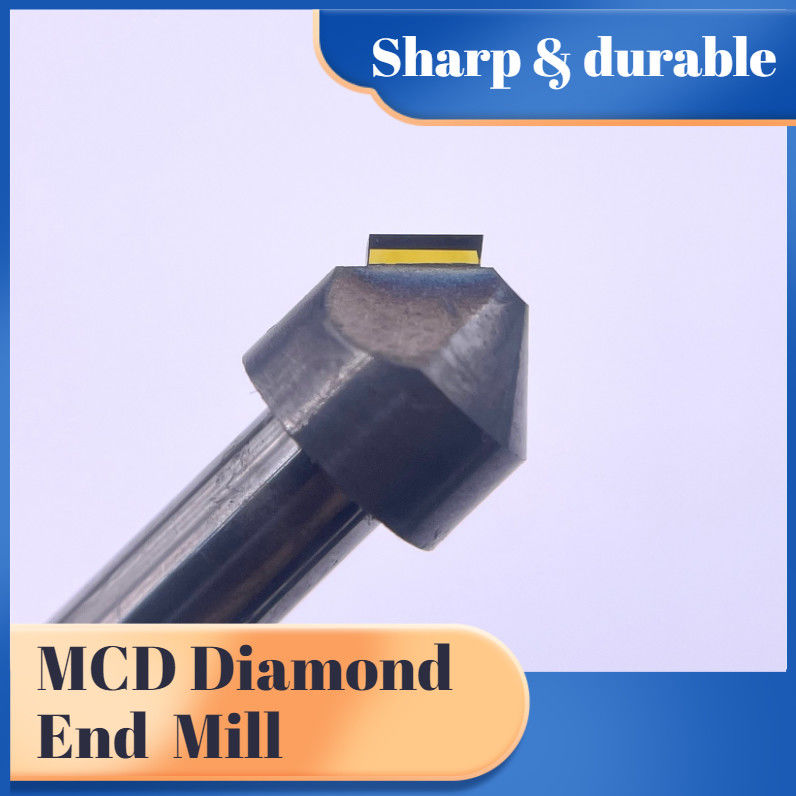

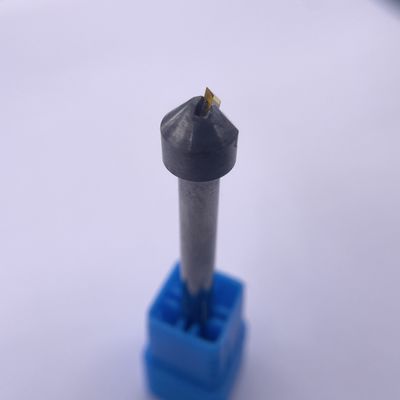

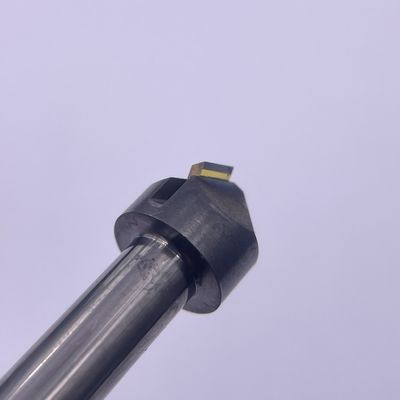

| Product name | MCD monocrystalline diamond end mill |
| Material | MCD,tungsten steel |
| Product specification | A variety of options |
| Feed Rate | 200-1000 |
| Stepover | 1-3mm |
| Machining effect | Surface highlights mirror effect |
| Applicable material | Acrylic, PVC, PC, PET, PMMA gold, silver, copper, aluminum alloy, etc |
| Spindle Speed Recommendation | 8,000-100,000 RPM (Higher RPM yields superior machining results). For side machining operations, employ helical ramping as the plunge method. |
| Place of Origin | China |
————————————————————————————————————————
| Rotary diameter * blade length * handle diameter * total length |
Blade length | Cutting hardness | Blade material | Knife tip R Angle(mm) |
Tool holder material |
| ∅1.5*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅2*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅3*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅4*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅5*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅6*H3*D6*50L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅8*H3*D6*60L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅10*H3*D10*60L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
| ∅12*H3*D12*60L | 3 | Superhard | Monocrystalline Diamond | Standard | Tungsten steel |
—————————————————————————————
Monocrystalline Diamond Inserts– Ultimate Rigidity!
Featuring exceptional hardness and thermal stability with broad material compatibility. Engineered for high-efficiency machine and reusable through precision regrinding. Key characteristics include:
·Ultra-high wear resistance
·Superior thermal conductivity
·Low thermal expansion coefficient
·Outstanding impact resistance
·Razor-sharp cutting edges achieving surface roughness of Ra0.01-0.006μm for ultra-precisionmachining
Crafted from premium-grade monocrystalline diamond, these inserts deliver unmatched hardness and wear resistance. Engineered with proprietary technology to ensure smooth cutting performance and deformation resistance.
—————————————————————————————
Tungsten Steel Toolholders– Engineered for Durability!
Precision-ground tool shanks with smooth surfaces and optimized chamfering ensure:
· Enhanced vibration damping
· Secure clamping with anti-slip performance
· Superior rigidity from high-grade tungsten steel
· Extended operational lifespan
—————————————————————————————
Versatile Applications– Unmatched Adaptability!
Processable Materials:
Aluminum| Aluminum Alloys| Copper Alloys| Synthetic Fibers| Carbon Fiber| Glass| Plastics|Wood| Composites
Industry Applications:
Ideal for machining automotive components, ferrous metals, steel alloys, cemented carbides, non-metallic materials, and ceramics. Essential for precision part manufacturing in aviation, automotive, machinery, electronics, instrumentation, and medical industries.
—————————————————————————————
Technical Specifications
1. Customizable Tool Geometry
Tailor cutting tool parameters including:
· Edge angles
· Diamond width
· Tip radius
· Precision grades
· Shank specifications/ materials
· Dual-edge functionality (bottom & side cutting edges)
· 180° cutting arc configuration
(Custom orders require prior consultation with our technical team)
2. Mirror-Finish Machining
Achieves surface roughness down to Ra0.1 through:
· Optimized side-edge utilization for glossy base finishes
· Ultra-sharp cutting edges with micron-level precision
· Super high quality monocrystalline diamond material with vibration-resistant design
· Enhanced machining stability minimizing surface scratches
· Dramatically reduced scrap rates
—————————————————————————————
