| Place of Origin: | China |
| Brand Name: | Infi |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | packed in box then into carton |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 100pcs/7days |
| Reduces Post-processing By: | 70% | Material Loss: | <0.5% |
|---|---|---|---|
| Applications: | Precision Bottom/sidewall Milling | Field Data: | 500+ Hours Continuous Operation |
| Highlight: | Mirror Finish MCD Diamond Tools,Diamond Helical End Mill |
||
Diamond Helical End Mill | PCD/MCD/CVD
|

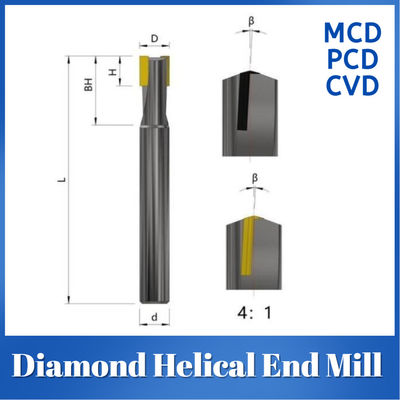

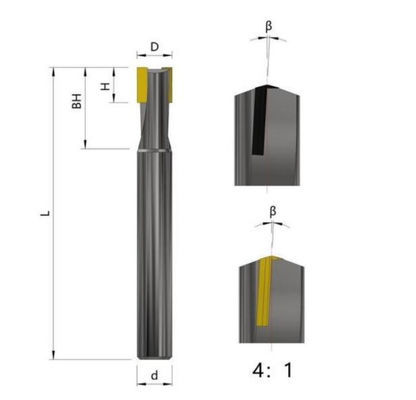

Tool parameter table (mm) |
|||||||
|
D |
H |
L |
d |
R |
BH |
β |
F |
|
1.5-10.0 |
3.0-6.0 |
50 |
4-10 |
0.03 |
5-10 |
1-7 |
1-2 |
1. R&D Objective
Traditional diamond end mills with vertical axial side edges employ full-width milling, resulting in visible vertical tool marks (feed lines) on machined surfaces. This significantly compromises sidewall finish quality (typically Ra0.2-0.5μm), failing to meet mirror-finish standards.
2. Features & Advantages
Helical Single-Point Milling:
Modular Design:
Process Optimization:
3. Applications
Precision bottom/sidewall milling
Mirror-finish machining for aerospace turbine blades, medical implants
4. Tool Lifespan
Single-edge: 5x longer vs straight-edge end mills
Double-edge: 10x longer vs single-edge variants
Field Data: 500+ hours continuous operation
5. Market Feedback
100% elimination of feed line defects
94% user satisfaction in luxury watch component production
